Wireless Wait Call System |
M-810T Table type |
|
Calling Waiters Just Press of a Red button |
|
Application
- Restaurants
- Bar
- Club
- Casino
- Hospitals
- Hotels
- Emergency situations
- Manufacturing
- Convention Centers
Programming by
 |
    Click for more detailed of pagers |

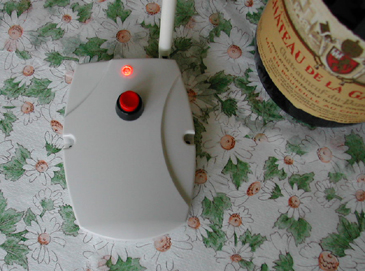

The M-810T on-site paging system is designed to directly page waiters by a simple press on a button.
Annoying you by raising your hand to call for services all the times? To get rid of this long waiting, simply press the red button |
Specifications of Encoder/Transmitter
| Paging format: |
POCSAG |
| Baud rate: |
512bps / 1200bps / 2400bps. |
| Message: |
Numeric and Alphanumeric (Max 40 Character) |
| Message data: |
Any Numeric or Alphanumeric SMD (Short Message Display)... |
| RF output |
4 mW (+6.0 db) |
| Modulation: |
FSK ,NRZ. |
| Deviation: |
4.5Khz |
| Stability: |
±10 ppm |
| Pager Capacity: |
1 Button. |
| Operating Voltage: |
9 V Alkaline battery |
| Programming: |
via USB with P/C |
| Battery life |
about half year ( 10 Time per day) |
| Size: |
100mm X 70mm X 25mm |
| Model Weight: |
120gs (with battery). |
| Notes: Specifications are subject to change without notice |
|
